Nitinol SMAs
Description
Nitinol is a metallic alloy of nickel and titanium with unique properties, including super elasticity or pseudo elasticity and "shape memory". Nitinol "remembers" its original, cold-forged shape, returning the pre-deformed shape by heating.
At higher temperatures, Nitinol has a cubic crystal structure called austenite. At lower temperatures, it spontaneously transforms into a more complex "monoclinic" crystal structure known as martensite. The temperature at which austenite transforms to martensite is generally referred to as the transformation temperature. This transformation is reversible, which means that heating to a temperature above the transformation temperature restores the crystal structure to the simpler austenite phase.
Our Nitinol SMAs
Alfa Chemistry provides a full range of Nitinol SMAs in binary and ternary formulations, and we also can produce custom formulations in binary, ternary, quaternary and beyond upon request. The following are our regular nitinol SMAs.
Catalog | Alloy System | As (fully annealed) | Typical As Tolerance | Addition Element (other than Ni and Ti) |
---|---|---|---|---|
ACAM-SMA-A001 | Binary NiTi | -50 ℃ | ±15 ℃ | No |
ACAM-SMA-A002 | Binary NiTi | -25 ℃ | ±10 ℃ | No |
ACAM-SMA-A003 | Binary NiTi | -15 ℃ | ±10 ℃ | No |
ACAM-SMA-A004 | Binary NiTi | -5 ℃ | ±10 ℃ | No |
ACAM-SMA-A005 | Binary NiTi | 0 ℃ | ±10 ℃ | No |
ACAM-SMA-A006 | Binary NiTi | +5 ℃ | ±10 ℃ | No |
ACAM-SMA-A007 | Binary NiTi | +20 ℃ | ±10 ℃ | No |
ACAM-SMA-A008 | Binary NiTi | +30 ℃ | ±10 ℃ | No |
ACAM-SMA-A009 | Binary NiTi | +55 ℃ | ±10 ℃ | No |
ACAM-SMA-A010 | Binary NiTi | +70 ℃ | ±7 ℃ | No |
ACAM-SMA-A011 | Binary NiTi | +95 ℃ | ±5 ℃ | No |
ACAM-SMA-A012 | NiTiCo | -80 ℃ | ±15 ℃ | Co 1.0-2.0 wt% |
ACAM-SMA-A013 | NiTiCr | -45 ℃ | ±15 ℃ | Cr 0.2-0.3 wt% |
ACAM-SMA-A014 | NiTiCr | -30 ℃ | ±15 ℃ | Cr 0.2-0.3 wt% |
ACAM-SMA-A015 | NiTiCr | -20 ℃ | ±15 ℃ | Cr 0.2-0.3 wt% |
ACAM-SMA-A016 | NiTiCr | -10 ℃ | ±15 ℃ | Cr 0.2-0.3 wt% |
ACAM-SMA-A017 | NiTiCu | +75 ℃ | ±7 ℃ | Cu 5.5-6.5 wt% |
ACAM-SMA-A018 | NiTiNb | N/A | N/A | Nb 13.0-15.0 wt% |

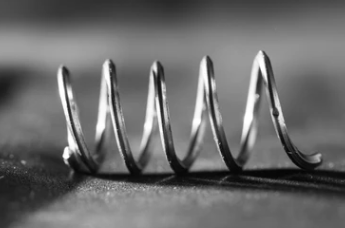

Wire and Strip
Nitinol Wire and Strip
Diameter
- 25.4 µm to 4.7 mm
Strip
- Width: 0.305 mm to 5.08 mm
- Thickness: 76.2 µm to 1.016 mm
- Spool Types
Surface Finishes
- Soft black oxide (chalky texture)
- Hard black oxide
- Oxide free (chemical etch)
- Oxide free polished (chem etch + mechanical polish)
- Amber oxide
Standard Weld Wire
- DIN 100
- DIN 125
- DIN 355
- Other customer defined spools available

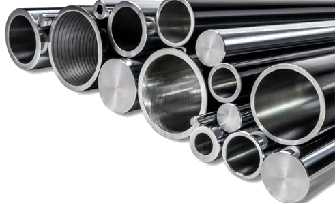

Tube
Nitinol Tube
Type OR Range Standard Tolerance Standard Finish Hypotube 0.127 – 0.508 mm OD/ID: ± 7.6 μm Light oxide OD – as drawn ID Hypotube 0.533 – 1.27 mm OD/ID: ± 10.2 μm Light oxide OD – oxide free ID Stent 1.295 – 3.81 mm Various dependent on OD/ID finish Combinations of light oxide and oxide free ODs & IDs Stent 3.835 – 5.004 mm Various dependent on OD/ID finish Combinations of light oxide and oxide free ODs & IDs Precision Tube 1.651 – 5.004 mm OD/Wall: ± 12.7 μm Ground OD-oxide free ID Precision Tube 5.029 – 8.382 mm OD/Wall: ± 20.3 μm Ground OD-oxide free ID Precision Tube 8.407 – 11.989 mm OD/Wall: ± 25.4 μm Ground OD-oxide free ID Standard Superelastic BB As, Fully annealed -25 ℃ to -5 ℃ Af, Fully annealed -10 ℃ to +10 ℃ Typical UPS @ 3% stain 400 – 500 MPa Minimum UTS 1137 MPa Max. EIr, after 6% strain, Austenite 0.30% Min. EIu/f 10% * The above table represents standard properties for nitinol tube. Values may change based on OD, wall, processing, and alloy.
Sheet
Nitinol Sheet
Typical Alloys and nominal active Af
- As(f.a.) -25 ± 10 ℃, active Af 0 ℃
- As(f.a.) -15 ± 10 ℃ (most common), Active Af +5 ℃
- As(f.a.) -15 ± 10 ℃ Redox, Active Af +5 ℃
- As(f.a.) +20 ± 15 ℃, Active Af +28 ℃
- As(f.a.) +65 ± 20 ℃, Active Af +70 ℃
- As(f.a.) +95 ± 5 ℃, Active Af > +80 ℃
Size
- Thickness – 0.076mm to 2.5mm
- Width – up 90mm with larger sizes upon request
- Length – up to 500mm
Condition
- Flat annealed (superelastic or shape memory depending on alloy)
- Cold worked upon special request
Surface finishes
- Oxide (special request)
- Etched
- Flat ground 1.5mm and larger
Mill Products
Mill Products
Billet and Slab
- Condition - hot forged
- Size - various
- Surface finishes
As forged oxide
As rolled oxide
Peeled/machined
Plate
- Condition - hot rolled
- Thickness range – 3.18mm and above
- Custom length and width, typically 300mm x 1200mm
- Surface finishes
Typical - sand blasted
Optional - as rolled oxide
Coil
- Condition - hot rolled
- Nominal diameters
6.35mm, 8.38mm, 9.91mm,
11.58mm, 14.00mm, 14.99mm - Surface finish – as rolled oxide
Ring
- Condition - hot ring rolled
- Size - various
- Surface finishes
As rolled oxide
Machined

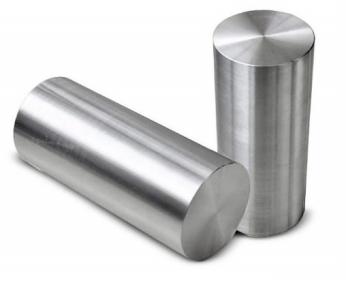

Bar
- Conditions
Hot rolled
Hot rolled and heat treated (aged) for superelastic behavior at room temperature - Diameter – 12.7mm to 32mm with larger sizes upon request
- Surface finishes
Centerless ground
Oxide (if heat treated)
As hot rolled oxide
Optional precision gun drilling
Redraw Wire
- Condition – as drawn with cold work up to 50%
- Diameter range – 1.27mm to 8.89mm
- Surface finishes
Oxide free (pickled/etched)
As drawn oxide
Typically supplied on DIN 355 or weld wire spools – alternatives upon request
* Technical data included herein should be used as a guideline only, and should not be construed as maximum or minimum values for specification or for final design, or for a particular use or application. The data may be revised anytime without notice.
